package datastructure;
import java.util.*;
/**
* @author cheysen
* @date 2025/4/3 12:36
* @description B 树是一种树数据结构，它使数据保持排序并允许对数时间的搜索、顺序访问、插入和删除。
* B 树是二叉搜索树的泛化，因为一个节点可以有两个以上的子节点。与自平衡二叉搜索树不同，B 树针对读取和写入大型数据块的系统进行了优化。它通常用于数据库和文件系统。
**/
@SuppressWarnings("unchecked")
public class BTree<T extends Comparable<T>> implements Tree<T> {
//2-3树是最简单的B树:最大key数量2,最大子节点数3,最小key数量2
private int minKeySize = 1;
private int minChildrenSize = minKeySize + 1;
private int maxKeySize = 2 * minKeySize;
private int maxChildrenSize = maxKeySize + 1;
private Node<T> root = null;
private int size = 0;
//默认2-3树
public BTree() {
}
//order:非根节点最少key数量
public BTree(int order) {
this.minKeySize = order;
this.minChildrenSize = minKeySize + 1;
this.maxKeySize = 2 * minKeySize;
this.maxChildrenSize = maxKeySize + 1;
}
public BTree<T> appendAdd(T value) throws Exception {
boolean added = add(value);
if (added) {
return this;
} else {
throw new Exception("add " + value + " error");
}
}
@Override

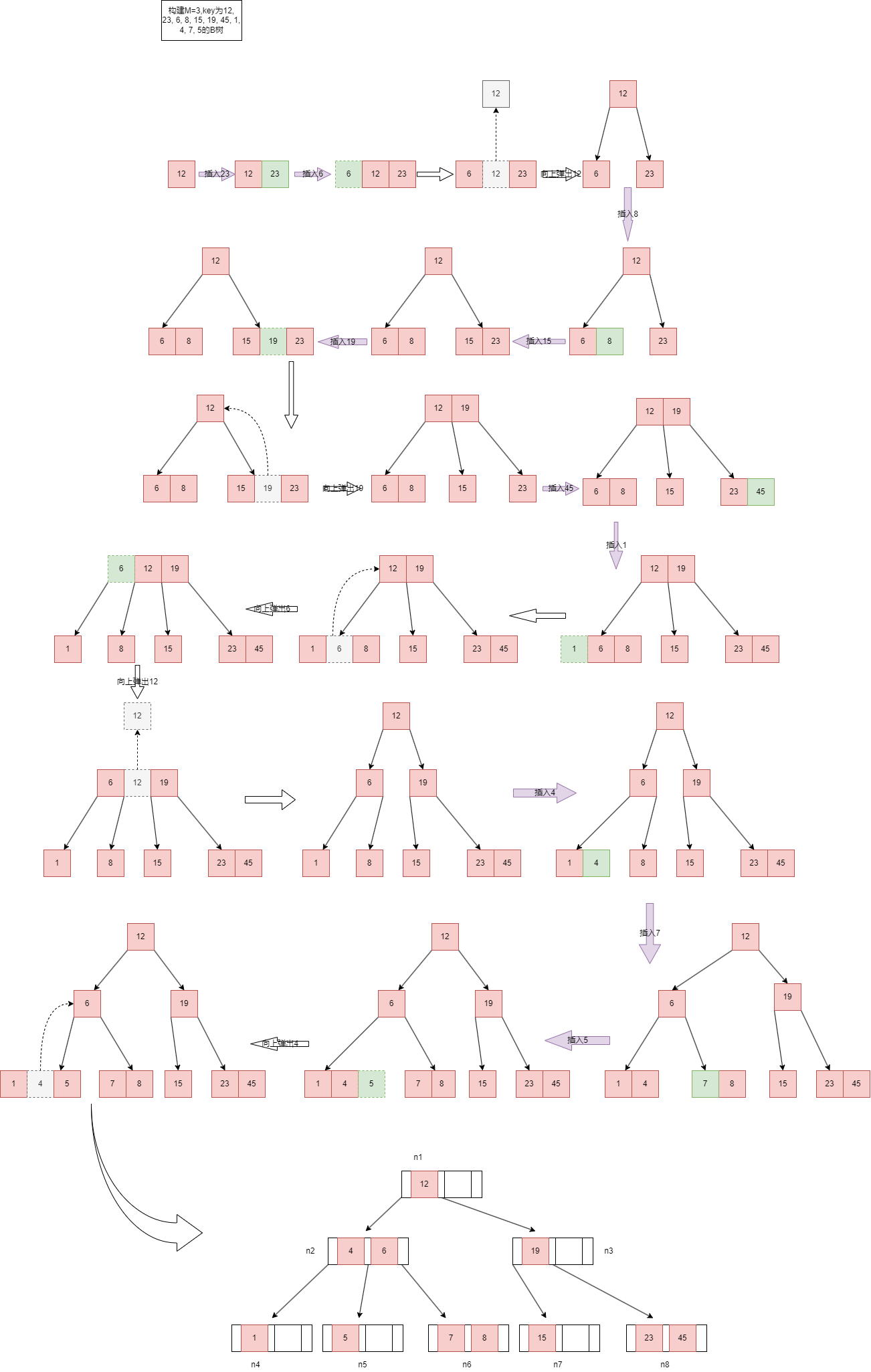

public boolean add(T value) {
if (root == null) {
root = new Node<T>(null, maxKeySize, maxChildrenSize);
root.addKey(value);
} else {
Node<T> node = root;
while (node != null) {
//没有子节点就在当前节点插入
if (node.numberOfChildren() == 0) {
node.addKey(value);
if (node.numberOfKeys() <= maxKeySize) {
break;
}
//key数量已满，需要分裂
split(node);
break;
}
//否则，按有序的规则查找该插入的节点
T lesser = node.getKey(0);
if (value.compareTo(lesser) <= 0) {
node = node.getChild(0);
continue;
}
int numberOfKeys = node.numberOfKeys();
int last = numberOfKeys - 1;
T greater = node.getKey(last);
if (value.compareTo(greater) > 0) {
node = node.getChild(numberOfKeys);
continue;
}
for (int i = 1; i < node.numberOfKeys(); i++) {
T prev = node.getKey(i - 1);
T next = node.getKey(i);
if (value.compareTo(prev) > 0 && value.compareTo(next) <= 0) {
node = node.getChild(i);
break;
}
}
}
}
size++;
return true;
}
@Override
public T remove(T value) {
T removed = null;
Node<T> node = this.getNode(value);
removed = remove(value, node);
return removed;
}
@Override
public boolean contains(T value) {
Node<T> node = getNode(value);
return node != null;
}
@Override
public void clear() {
root = null;
size = 0;
}
@Override
public int size() {
return size;
}
@Override
public boolean validate() {
if (root == null) {
return true;
}
return validateNode(root);
}
@Override
public Collection<T> toCollection() {
return new JavaCompatibleBTree<>(this);
}
@Override
public String toString() {
return TreePrinter.getString(this);
}
/**
* 获取目标值所在节点
* @param value 要查找的值
* @return 目标值所在节点
*/
private Node<T> getNode(T value) {
Node<T> node = root;
while (node != null) {
//尝试是否比节点最小值小
T lesser = node.getKey(0);
if (value.compareTo(lesser) < 0) {
if (node.numberOfChildren() > 0) {
node = node.getChild(0);
} else {
node = null;
}
continue;
}
//尝试是否比节点最大值大
int numberOfKeys = node.numberOfKeys();
int lastIndex = numberOfKeys - 1;
T greater = node.getKey(lastIndex);
if (value.compareTo(greater) > 0) {
if (node.numberOfChildren() > numberOfKeys) {
node = node.getChild(numberOfKeys);
} else {
node = null;
}
continue;
}
//不满足极大极小情况,在中间值中比较
for (int i = 0; i < numberOfKeys; i++) {
T currentValue = node.getKey(i);
if (currentValue.compareTo(value) == 0) {
return node;
}
int next = i + 1;
if (next <= lastIndex) {
T nextValue = node.getKey(next);
//目标值介于第i与第i+1个key之间时,在第i+1个子节点(如果有)中继续查找
if (value.compareTo(currentValue) > 0 && value.compareTo(nextValue) < 0) {
if (next < node.numberOfChildren()) {
node = node.getChild(next);
break;
}
return null;
}
}
}
}
return null;
}
/**
* 从节点中删除值
* @param value 要删除的值
* @param node 要删除的值所在节点
* @return true-删除成功
*/
private T remove(T value, Node<T> node) {
if (node == null) {
return null;
}
T removed = null;
int index = node.indexOf(value);
removed = node.removeKey(index);

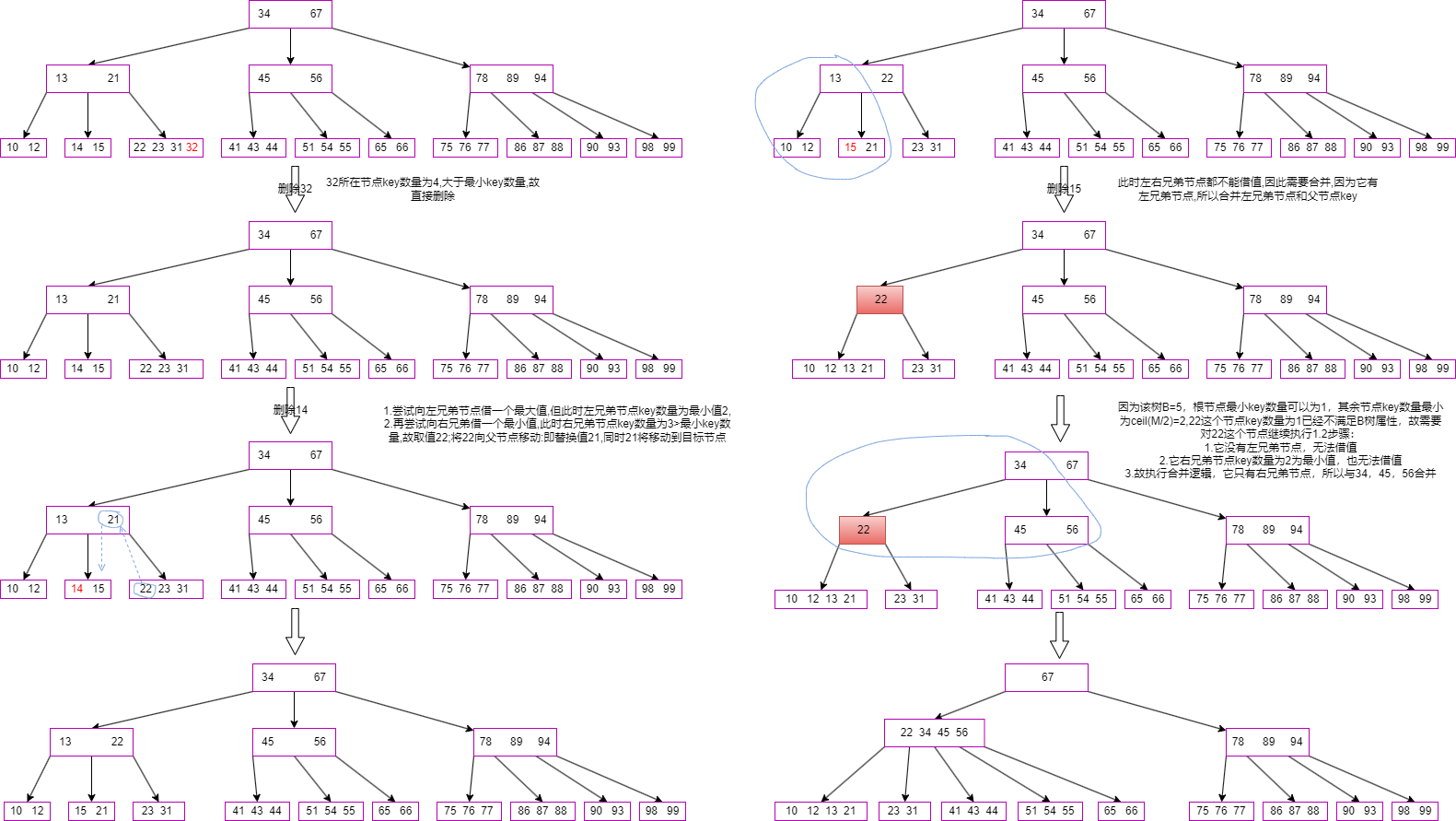

//叶子节点元素的删除:1.直接删除 2.兄弟节点借值 3.合并兄弟节点(之一)与父节点key
if (node.numberOfChildren() == 0) {
if (node.parent != null && node.numberOfKeys() < minKeySize) {
this.combined(node);
} else if (node.parent == null && node.numberOfKeys() == 0) {
//只有一个元素根节点删除,清空树
root = null;
}
} else {

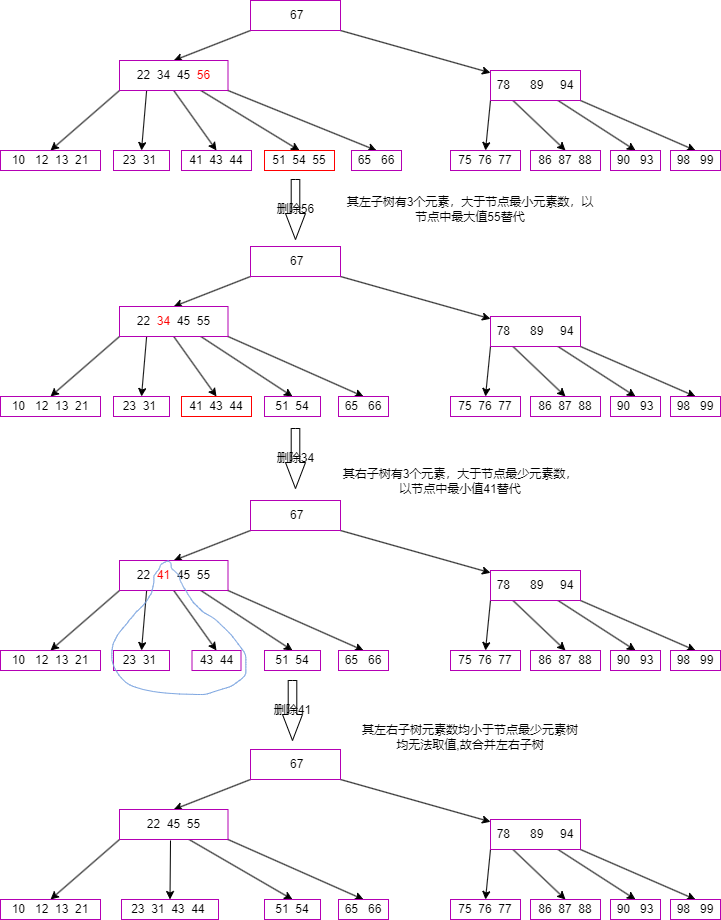

//内部节点元素的删除:1.有序前驱值替换 2.有序后继值替换 3.合并目标值的左右子节点
Node<T> lesser = node.getChild(index);
//找到最大有序前驱
Node<T> greatestNode = this.getGreatestNode(lesser);
T replaceValue = this.removeGreatestValue(greatestNode);
node.addKey(replaceValue);
//借最大有序前驱相当于在子节点中删除一个最大值
if (greatestNode.parent != null && greatestNode.numberOfKeys() < minKeySize) {
this.combined(greatestNode);
}
//combined中不需考虑分裂的情况:借值不用考虑;合并只在左右兄弟节点key数量等于minKeySize时,合并后最大为maxKeySize
//而这里是先借值,再合并,如果是借最有序前驱,假如右兄弟节点有maxKeySize,合并后就需要分裂
if (greatestNode.numberOfChildren() > maxChildrenSize) {
this.split(greatestNode);
}
}
size--;
return removed;
}
/** 当节点key数量不足最小数量时组合父节点和子节点key.组合包括向兄弟节点借值和合并两种情况
* @param node 组合的子节点
* @return true-组合成功
*/
private boolean combined(Node<T> node) {
Node<T> parent = node.parent;
int indexOfParentChild = parent.indexOf(node);
int indexOfLeftNeighbor = indexOfParentChild - 1;
int indexOfRightNeighbor = indexOfParentChild + 1;
Node<T> rightNeighbor = null;
//这里只是初始化
int rightNeighborSize = -minChildrenSize;
//如果有右兄弟节点
if (indexOfRightNeighbor < parent.numberOfChildren()) {
rightNeighbor = parent.getChild(indexOfRightNeighbor);
rightNeighborSize = rightNeighbor.numberOfKeys();
}

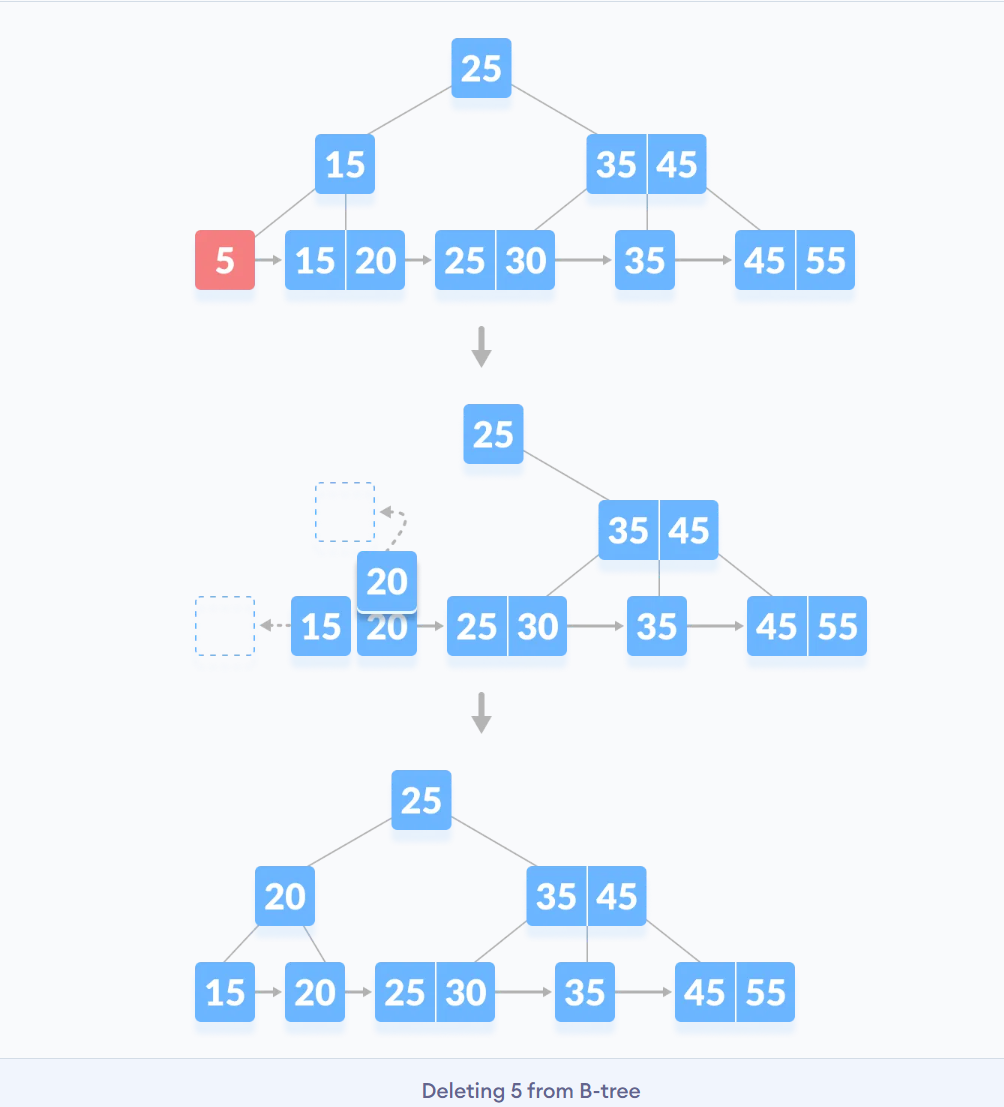

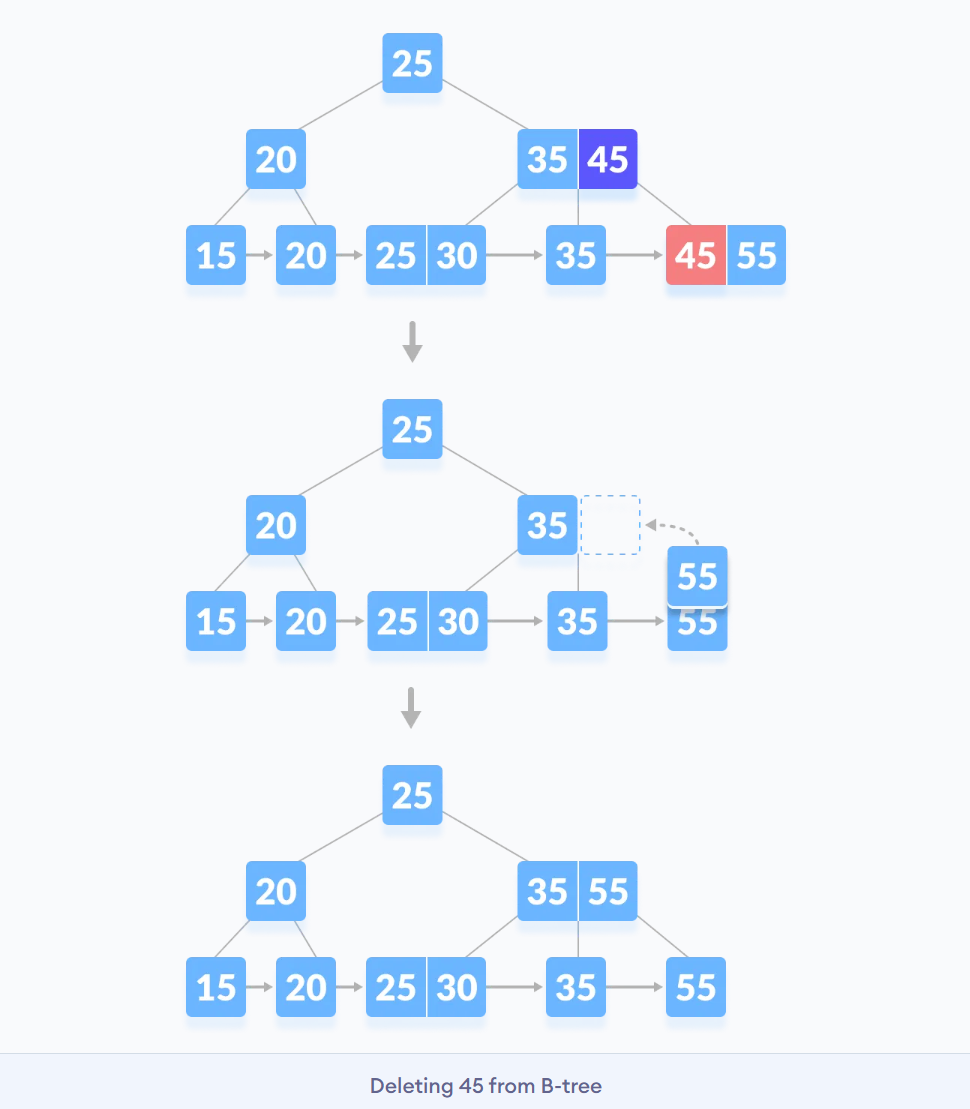

//尝试向兄弟节点借值(左右顺序没有先后)
if (rightNeighbor != null && rightNeighborSize > minKeySize) {
//右兄弟节点的最小值
T removeValue = rightNeighbor.getKey(0);
//父节点中有序前驱(相对于给定值而言)的索引
int prev = getIndexOfPreviousValue(parent, removeValue);
T parentValue = parent.removeKey(prev);
T neighborValue = rightNeighbor.removeKey(0);
node.addKey(parentValue);
parent.addKey(neighborValue);
if (rightNeighbor.numberOfChildren() > 0) {
node.addChild(rightNeighbor.removeChild(0));
}
} else {
Node<T> leftNeighbor = null;
int leftNeighborSize = -minChildrenSize;
if (indexOfLeftNeighbor >= 0) {
leftNeighbor = parent.getChild(indexOfLeftNeighbor);
leftNeighborSize = leftNeighbor.numberOfKeys();
}
if (leftNeighbor != null && leftNeighborSize > minKeySize) {
//左兄弟节点的最大值
T removeValue = leftNeighbor.getKey(leftNeighbor.numberOfKeys() - 1);
int nextV = getIndexOfNextValue(parent, removeValue);
T parentValue = parent.removeKey(nextV);
T neighborValue = leftNeighbor.removeKey(leftNeighbor.numberOfKeys() - 1);
node.addKey(parentValue);
parent.addKey(neighborValue);
if (leftNeighbor.numberOfChildren() > 0) {
node.addChild(leftNeighbor.removeChild(leftNeighbor.numberOfChildren() - 1));
}
} else if (rightNeighbor != null && parent.numberOfKeys() > 0) {

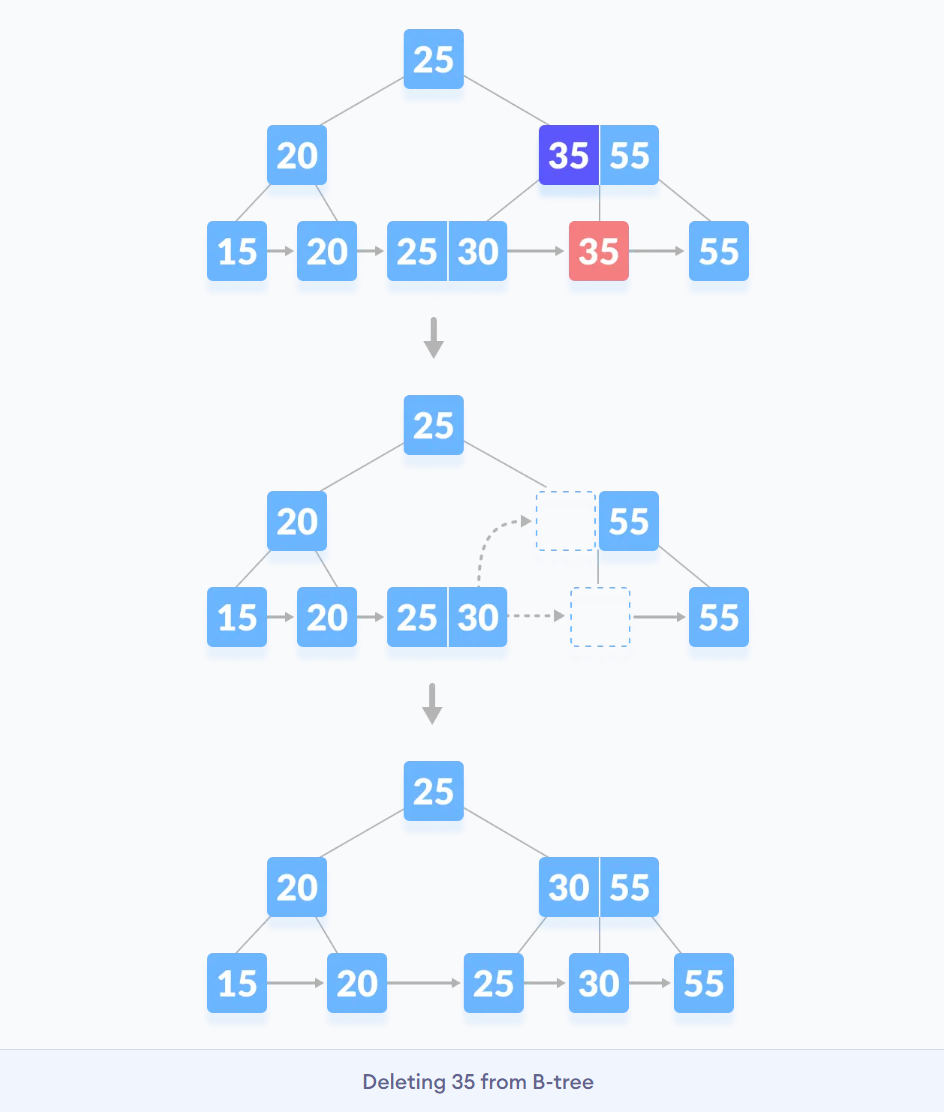

//不能借值,尝试与右兄弟节点合并(左右顺序没有先后)
T removeValue = rightNeighbor.getKey(0);
int prev = getIndexOfPreviousValue(parent, removeValue);
T parentValue = parent.removeKey(prev);
parent.removeChild(rightNeighbor);
node.addKey(parentValue);
for (int i = 0; i < rightNeighbor.keySize; i++) {
T v = rightNeighbor.getKey(i);
node.addKey(v);
}
//非叶子节点合并需要考虑
for (int i = 0; i < rightNeighbor.childrenSize; i++) {
Node<T> c = rightNeighbor.getChild(i);
node.addChild(c);
}
if (parent.parent != null && parent.numberOfKeys() < minKeySize) {
//合并使得父节点key数量不足最小数量,继续向上合并
this.combined(parent);

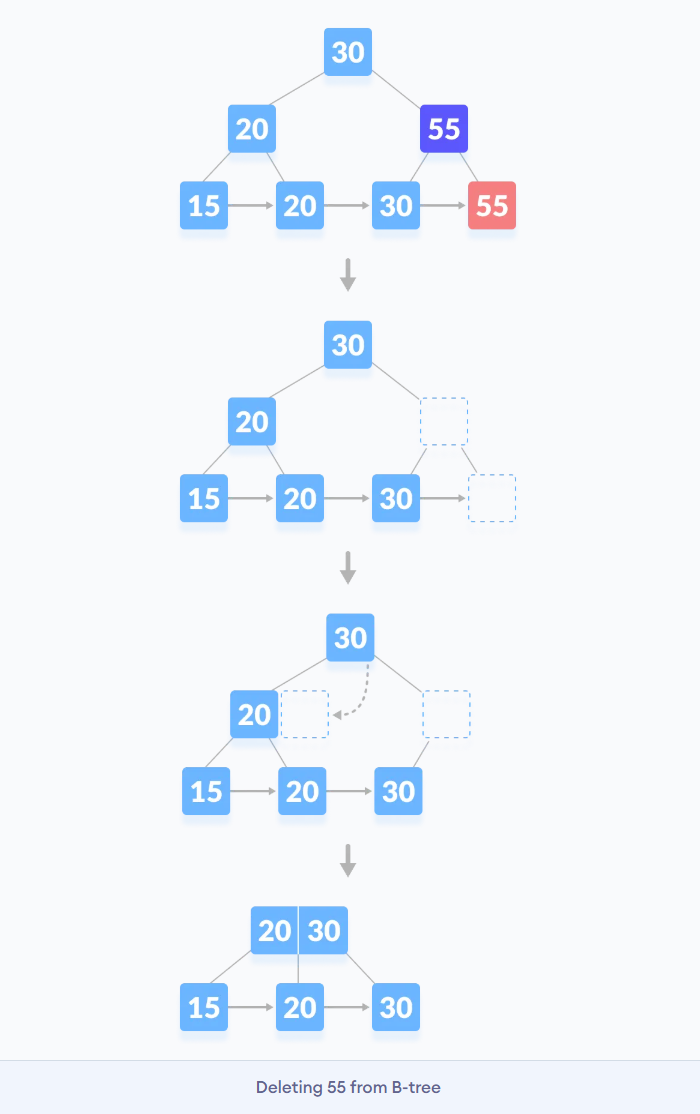

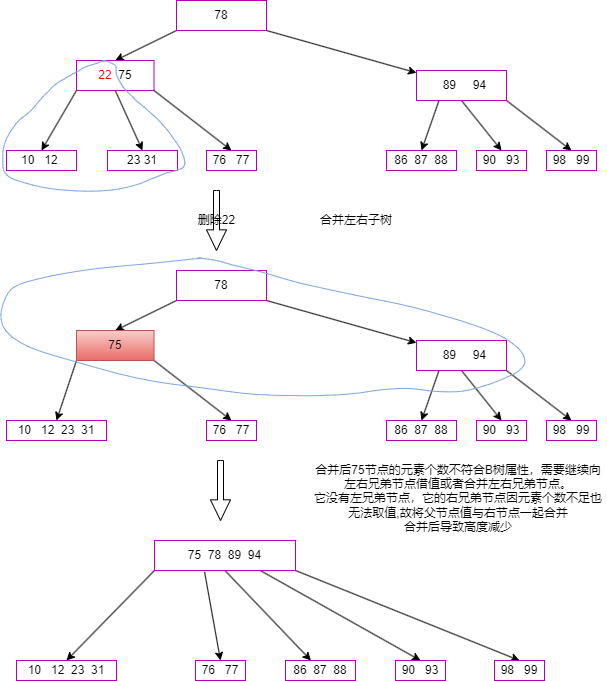

} else if (parent.numberOfKeys() == 0) {
//合并使得父节点没有key,树都高度减少
node.parent = null;
root = node;
}
} else if (leftNeighbor != null && parent.numberOfKeys() > 0) {
T removeValue = leftNeighbor.getKey(leftNeighbor.numberOfKeys() - 1);
int nextV = getIndexOfNextValue(parent, removeValue);
T parentValue = parent.removeKey(nextV);
parent.removeChild(leftNeighbor);
node.addKey(parentValue);
for (int i = 0; i < leftNeighbor.keySize; i++) {
T v = leftNeighbor.getKey(i);
node.addKey(v);
}
for (int i = 0; i < leftNeighbor.childrenSize; i++) {
Node<T> c = leftNeighbor.getChild(i);
node.addChild(c);
}
if (parent.parent != null && parent.numberOfKeys() < minKeySize) {
this.combined(parent);
} else if (parent.numberOfKeys() == 0) {
node.parent = null;
root = node;
}
}
}
return true;
}
/**
* 节点key数量大于最大key数量，从中间分裂
* @param nodeToSplit 要分裂的节点
*/
private void split(Node<T> nodeToSplit) {
Node<T> node = nodeToSplit;
int numberOfKeys = node.numberOfKeys();
int medianIndex = numberOfKeys / 2;//向下取整
T medianValue = node.getKey(medianIndex);
Node<T> left = new Node<>(null, maxKeySize, maxChildrenSize);
for (int i = 0; i < medianIndex; i++) {
left.addKey(node.getKey(i));
}
//如果中间值是第i个key,那么前i个子节点归为分裂出的左节点的子节点
if (node.numberOfChildren() > 0) {
for (int j = 0; j <= medianIndex ; j++) {
Node<T> c = node.getChild(j);
left.addChild(c);
}
}
Node<T> right = new Node<>(null, maxKeySize, maxChildrenSize);
for (int i = medianIndex + 1; i < numberOfKeys ; i++) {
right.addKey(node.getKey(i));
}
//如果中间值是第i个key,那么后m-i个子节点归为分裂出的右节点的子节点
if (node.numberOfChildren() > 0) {
for (int j = medianIndex + 1; j < node.numberOfChildren(); j++) {
Node<T> c = node.getChild(j);
right.addChild(c);
}
}
//将中间值向上弹出至父节点
if (node.parent == null) {
//如果是根节点的分裂,树的高度增加
Node<T> newRoot = new Node<>(null, maxKeySize, maxChildrenSize);
newRoot.addKey(medianValue);
node.parent = newRoot;
root = newRoot;
root.addChild(left);
root.addChild(right);
} else {
Node<T> parent = node.parent;
parent.addKey(medianValue);
parent.removeChild(node);
parent.addChild(left);
parent.addChild(right);
//如果父节点key数量已满,则继续分裂
if (parent.numberOfKeys() > maxKeySize) {
split(parent);
}
}
}
/**
* 在节点中找第一个小于给定值的值的索引
* @param node
* @param value
* @return 有序前驱的索引 | -1
*/
private int getIndexOfPreviousValue(Node<T> node, T value) {
//只有1个值时,直接返回了
for (int i = 1; i < node.numberOfKeys(); i++) {
T t = node.getKey(i);
if (t.compareTo(value) >= 0) {
return i - 1;
}
}
return node.numberOfKeys() - 1;
}
/**
* 在节点中第一个大于给定值的索引
* @param node
* @param value
* @return 有序后继的索引 | -1
*/
private int getIndexOfNextValue(Node<T> node, T value) {
for (int i = 0; i < node.numberOfKeys(); i++) {
T t = node.getKey(i);
if (t.compareTo(value) >= 0) {
return i;
}
}
return node.numberOfKeys() - 1;
}
/**
* 找到给定节点树下的最大(最右)节点
* @param nodeToGet
* @return
*/
private Node<T> getGreatestNode(Node<T> nodeToGet) {
Node<T> node = nodeToGet;
while (node.numberOfChildren() > 0) {
node = node.getChild(node.numberOfChildren() - 1);
}
return node;
}
/**
* 删除节点中的最大值
* @param node
* @return
*/
private T removeGreatestValue(Node<T> node) {
T value = null;
if (node.numberOfKeys() > 0) {
value = node.removeKey(node.numberOfKeys() - 1);
}
return value;
}
/**
* 以给定节点为根节点验证B树是否合法
* @param node
* @return
*/
private boolean validateNode(Node<T> node) {
int keySize = node.numberOfKeys();
if (keySize > 1) {
//验证元素是否升序
for (int i = 1; i < keySize; i++) {
T p = node.getKey(i - 1);
T n = node.getKey(i);
if (p.compareTo(n) > 0) {
return false;
}
}
}
int childrenSize = node.numberOfChildren();
if (node.parent == null) {
//根节点
if (keySize > maxKeySize) {
//根节点没有最小元素限制，空树也视为合法
return false;
} else if (childrenSize == 0) {
return true;
} else if (childrenSize < 2) {
//2-3树是最简单的B树
return false;
} else if (childrenSize > maxChildrenSize) {
return false;
}
} else {
//非根节点
if (keySize < minKeySize) {
return false;
} else if (keySize > maxKeySize) {
return false;
} else if (childrenSize == 0) {
return true;
} else if (keySize != (childrenSize - 1)) {
//key数量可以由子节点树推导，但子节点树不一定是keySize+1
return false;
} else if (childrenSize > maxChildrenSize) {
return false;
} else if (childrenSize < minChildrenSize) {
return false;
}
}
//第一个子节点的有序性
Node<T> first = node.getChild(0);
if (first.getKey(first.numberOfKeys() - 1).compareTo(node.getKey(0)) > 0) {
return false;
}
//最后一个子节点的有序性
Node<T> last = node.getChild(node.numberOfChildren() - 1);
if (last.getKey(0).compareTo(node.getKey(node.numberOfKeys() - 1)) < 0) {
return false;
}
//中间节点的有序性
for (int i = 1; i < node.numberOfKeys(); i++) {
T p = node.getKey(i - 1);
T n = node.getKey(i);
Node<T> c = node.getChild(i);
if (p.compareTo(c.getKey(0)) > 0) {
return false;
}
if (n.compareTo(c.getKey(c.numberOfKeys() - 1)) < 0) {
return false;
}
}
//递归向下验证
for (int i = 0; i < node.childrenSize; i++) {
Node<T> c = node.getChild(i);
boolean valid = this.validateNode(c);
if (!valid) {
return false;
}
}
return true;
}
private static class Node<T extends Comparable<T>> {
private T[] keys = null;
private int keySize = 0;
private Node<T>[] children = null;
private int childrenSize = 0;
private Node<T> parent = null;
private Node(Node<T> parent, int maxKeySize, int maxChildrenSize) {
this.parent = parent;
//+1是为了应对分裂
this.keys = (T[])new Comparable[maxKeySize + 1];
this.children = new Node[maxChildrenSize + 1];
this.keySize = 0;
this.childrenSize = 0;
}
private Comparator<Node<T>> comparator = new Comparator<Node<T>>() {
@Override
public int compare(Node<T> o1, Node<T> o2) {
//TODO 这里该如何定义?
return o1.getKey(0).compareTo(o2.getKey(0));
}
};
private T getKey(int index) {
return keys[index];
}
private int indexOf(T value) {
for (int i = 0; i < keySize; i++) {
if (keys[i].equals(value)) {
return i;
}
}
return -1;
}
private void addKey(T value) {
//不使用排序
int i = 0;
/*通过向后复制来实现插入,如[11,15,20,0,0]插入17
[11,15,20,20,0] -> [11,15,17,20,0]
*/
for (i = keySize - 1; i >=0 && value.compareTo(keys[i]) < 0 ; i--) {
keys[i + 1] = keys[i];
}
keys[i + 1] = value;
keySize++;
//使用排序
/*
keys[keysSize++] = value;
Arrays.sort(keys, 0, keysSize);
*/
}
//此方法只考虑节点内部元素的删除
private T removeKey(T value) {
T removed = null;
boolean found = false;
if (keySize == 0) {
return null;
}
for (int i = 0; i < keySize; i++) {
if (keys[i].equals(value)) {
found = true;
removed = keys[i];
} else if (found) {
//向前复制删除,第一次循环不会进入这段逻辑,所以i-1>0
keys[i -1 ] = keys[i];
}
}
//删除相当于整体向前移一位
if (found) {
keySize--;
keys[keySize] = null;
}
return null;
}
//此方法只考虑节点内部元素的删除
private T removeKey(int index) {
if (index >= keySize) {
return null;
}
T value = keys[index];
for (int i = index + 1; i < keySize; i++) {
keys[i - 1] = keys[i];
}
keySize--;
keys[keySize] = null;
return value;
}
private int numberOfKeys() {
return keySize;
}
private int numberOfChildren() {return childrenSize;}
private Node<T> getChild(int index) {
if (index >= childrenSize) {
return null;
}
return children[index];
}
private int indexOf(Node<T> child) {
for (int i = 0; i < childrenSize; i++) {
if (children[i].equals(child)) {
return i;
}
}
return -1;
}
private boolean addChild(Node<T> child) {
child.parent = this;
children[childrenSize++] = child;
Arrays.sort(children, 0, childrenSize, comparator);
return true;
}
private boolean removeChild(Node<T> child) {
boolean found = false;
if (childrenSize == 0) {
return found;
}
for (int i = 0; i < childrenSize; i++) {
if (children[i].equals(child)) {
found = true;
} else if(found) {
children[i - 1] = children[i];
}
}
if (found) {
childrenSize--;
children[childrenSize] = null;
}
return found;
}
private Node<T> removeChild(int index) {
if (index >= childrenSize) {
return null;
}
Node<T> value = children[index];
children[index] = null;
for (int i = index + 1; i < childrenSize; i++) {
children[i - 1] = children[i];
}
childrenSize--;
children[childrenSize] = null;
return value;
}
@Override
public String toString() {
StringBuilder builder = new StringBuilder();
builder.append("keys=[");
for (int i = 0; i < numberOfKeys(); i++) {
T value = getKey(i);
builder.append(value);
if (i < numberOfKeys() - 1) {
builder.append(", ");
}
}
builder.append("]\n");
if (parent != null) {
builder.append("parent=[");
for (int i = 0; i < parent.numberOfKeys(); i++) {
T value = parent.getKey(i);
builder.append(value);
if (i < parent.numberOfKeys() - 1) {
builder.append(", ");
}
builder.append(", ");
}
}
if (children != null) {
builder.append("keySize=")
.append(numberOfKeys())
.append(" children=[")
.append(numberOfChildren()).append("\n");
}
return builder.toString();
}
}
public static class JavaCompatibleBTree<T extends Comparable<T>> extends AbstractCollection<T> {
private BTree<T> tree = null;
public JavaCompatibleBTree(BTree<T> tree) {
this.tree = tree;
}
@Override
public boolean add(T value) {
return tree.add(value);
}
@Override
public boolean remove(Object value) {
return tree.remove((T) value) != null;
}
@Override
public boolean contains(Object value) {
return tree.contains((T) value);
}
@Override
public int size() {
return tree.size();
}
@Override
public Iterator<T> iterator() {
return new BTreeIterator<>(this.tree);
}
private static class BTreeIterator<C extends Comparable<C>> implements Iterator<C> {
private BTree<C> tree = null;
private BTree.Node<C> lastNode = null;
private C lastValue = null;
private int index = 0;
private Deque<BTree.Node<C>> toVisit = new ArrayDeque<>();
public BTreeIterator(BTree<C> tree) {
this.tree = tree;
if (tree.root != null && tree.root.keySize > 0) {
toVisit.add(tree.root);
}
}
@Override
public boolean hasNext() {
if ((lastNode != null && index < lastNode.keySize) || toVisit.size() > 0) {
return true;
}
return false;
}
@Override
public C next() {
if (lastNode != null && (index < lastNode.keySize)) {
lastValue = lastNode.getKey(index++);
return lastValue;
}
if (toVisit.size() > 0) {
Node<C> n = toVisit.pop();
for (int i = 0; i < n.childrenSize; i++) {
toVisit.add(n.getChild(i));
}
index = 0;
lastNode = n;
lastValue = lastNode.getKey(index++);
return lastValue;
}
return null;
}
@Override
public void remove() {
if (lastNode != null && lastValue != null) {
//删除时，重置迭代器（效率很低）
tree.remove(lastValue, lastNode);
lastNode = null;
lastValue = null;
index = 0;
toVisit.clear();
if (tree.root != null && tree.root.keySize > 0) {
toVisit.add(tree.root);
}
}
}
}
}
private static class TreePrinter {
public static <T extends Comparable<T>> String getString(BTree<T> tree) {
if (tree.root == null) {
return "Tree is empty";
}
return getString(tree.root, "", true);
}
private static <T extends Comparable<T>> String getString(Node<T> node, String prefix, boolean isTail) {
StringBuilder builder = new StringBuilder();
builder.append(prefix).append(isTail ? "└── " : "├── ");
for (int i = 0; i < node.numberOfKeys(); i++) {
T value = node.getKey(i);
builder.append(value);
if (i < node.numberOfKeys() - 1) {
builder.append(", ");
}
}
builder.append("\n");
if (node.children != null) {
for (int i = 0; i < node.numberOfChildren() - 1; i++) {
Node<T> obj = node.getChild(i);
builder.append(getString(obj, prefix + (isTail ? " " : "| "), false));
}
if (node.numberOfChildren() >=1 ) {
Node<T> obj = node.getChild(node.numberOfChildren() - 1);
builder.append(getString(obj, prefix + (isTail ? " " : "| "), true));
}
}
return builder.toString();
}
}
public static void main(String[] args) throws Exception {
BTree<Integer> tbTree = new BTree<>(1);
tbTree.add(12);
tbTree.add(23);
tbTree.add(6);
tbTree.add(8);
tbTree.add(15);
tbTree.add(19);
tbTree.add(45);
tbTree.add(1);
tbTree.add(4);
tbTree.add(7);
tbTree.add(5);
System.out.println(tbTree);
tbTree.toCollection().forEach(System.out::println);
BTree<Integer> fiveWay = new BTree<>(2);
fiveWay.appendAdd(78)
.appendAdd(22)
.appendAdd(75)
.appendAdd(89)
.appendAdd(94)
.appendAdd(10)
.appendAdd(12)
.appendAdd(23)
.appendAdd(31)
.appendAdd(76)
.appendAdd(77)
.appendAdd(86)
.appendAdd(87)
.appendAdd(88)
.appendAdd(90)
.appendAdd(93)
.appendAdd(98)
.appendAdd(99);
System.out.println(fiveWay);
fiveWay.remove(22);
System.out.println(fiveWay);
fiveWay.toCollection().forEach(System.out::println);
}
}
|
